Electric Power Capacitor

Capacitor   2000VDC-5600μF

Nominal values

Rated capacitance

Cn

［ μF］

5600

Capacitor tolerance

［%］

±10%

Rated voltage

Un

［Vdc］

1950

5

［Vdc］

2000

Overvoltage

［Vdc］

2100

Rate of voltage rise (DV/dt)

4

Loss factor

tgδ

≤0.0050 (1V, 1KHz, 20°C)

Rms current

Ir

[A]

250

Peak current

I

[A]

20000

Temperature Coefficient

[ppm/℃]

between –300 and -150

Insulating resistance

I

[MΩ]

＞10000 (100V, 20°C)

Test values

Between terminals

U_t-t

[Vdc]

2950 - 10s

Between terminals and case

U_t-c

[Vac]

5000 - 50Hz - 60s

Climatic conditions

Cooling

natural ventilation

Operating temperature

θ_amb

[℃]

-40 / +70

Storage temperature

θ

[℃]

-25 / +75

Installation

Whatever Position

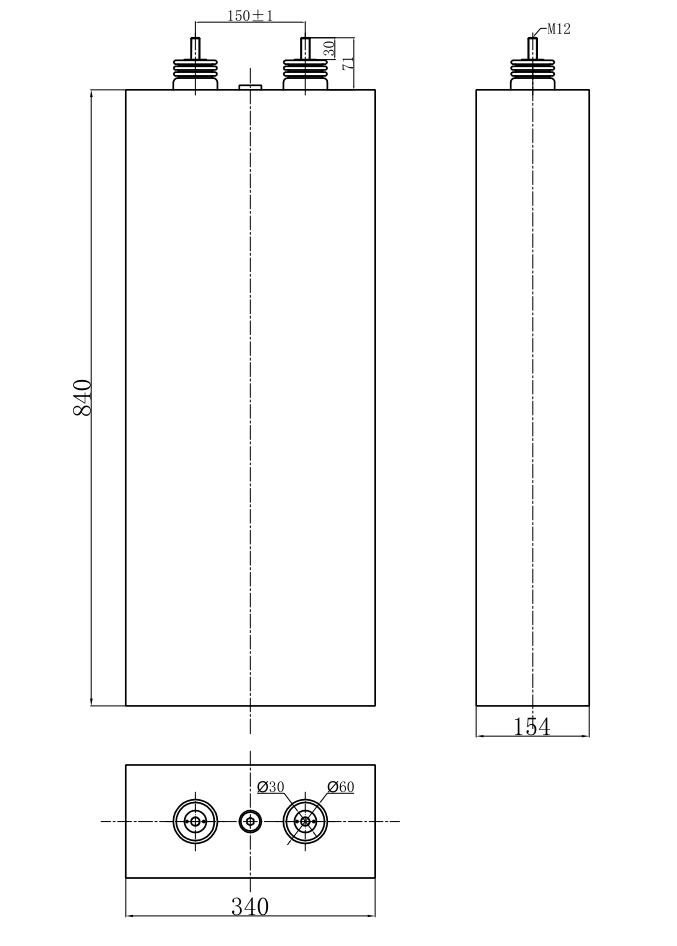

Terminals

Screw bolt

[mm]

2-M12×150

Torque for screw connections

[N.m]

M8-6N.m, M12-8N.m

Weight

[kg]

≤10

Case

304 stainless steel

Technology

Dielectric

Polypropylene

Impregnants

Polyurethane resin/Oil/ Epoxy resin/Wax/Inert gas

Execution according to

IEC 61071
